Circulating Hot Water Heat Pump

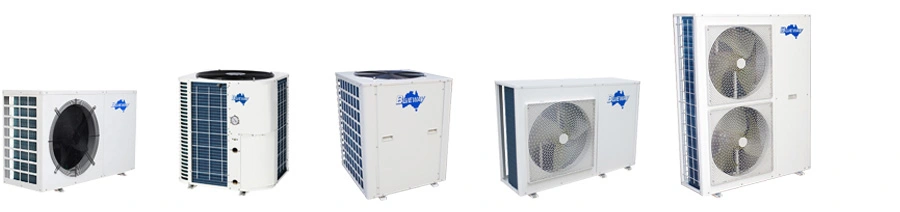

Air Source Circulating Hot Water Heat Pump with versatie design, high outlet water temperature, high COP and low noise operation, ideal for fast and stable hot water supply in various applications, like house, hotel, hospital, school, villa, etc. Adopt high efficiency water heat exchanger: tube-in- shell for cycle heating type, tube-in-tube for direct heating type. Optional on-off & inverter type.

Circulating Hot Water Heat Pump

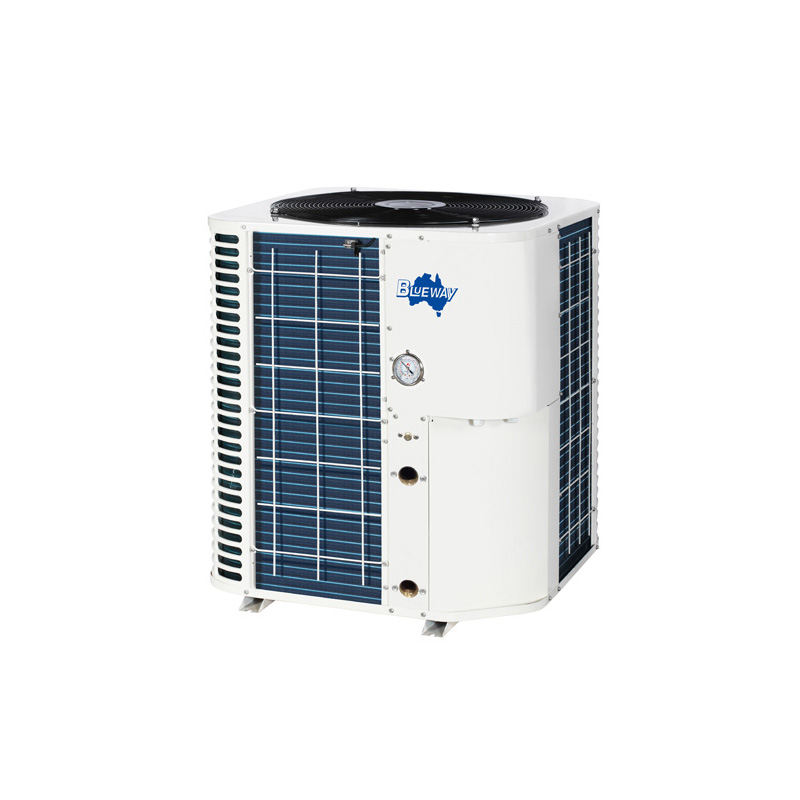

The Circulating Hot Water Heat Pump features a high-efficiency shell-and-tube heat exchanger and an integrated water pump for simplified installation. It delivers hot water at temperatures up to 60°C and can be retrofitted to an existing water heater, replacing electric units and reducing energy consumption by over two-thirds.

The Instant Domestic Hot Water Heat Pump utilizes advanced variable flow control technology to maintain a constant outlet temperature in both cold and hot climates. Unlike circulating models, it instantly heats water to the set temperature. Fast defrosting technology ensures reliable performance even in low-temperature, humid conditions.

Circulating Hot Water Heat Pump

Cycle Heating & Direct Heating Type

Circulating Hot Water Heat Pump

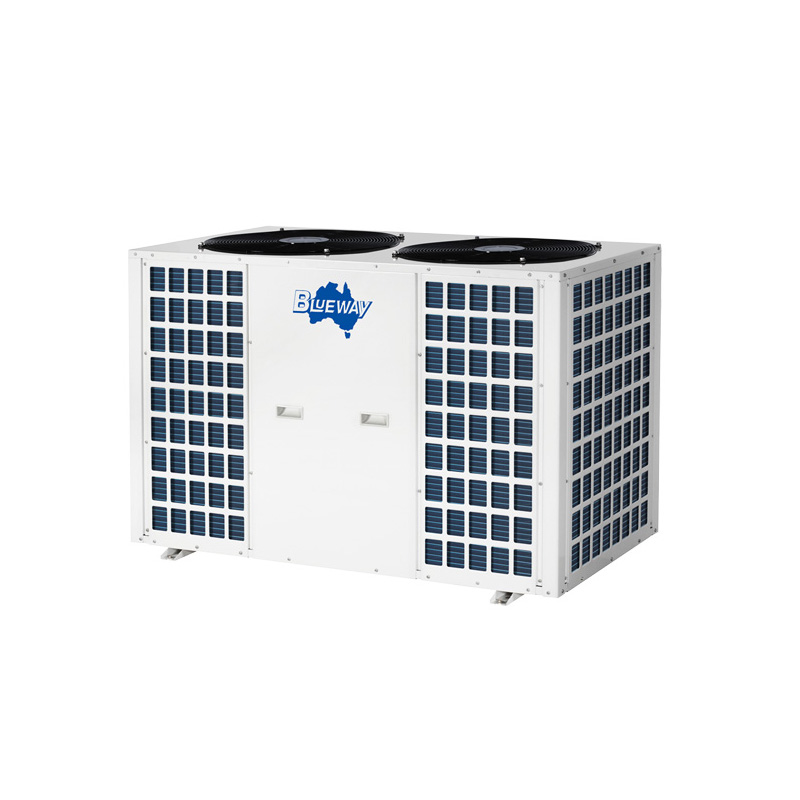

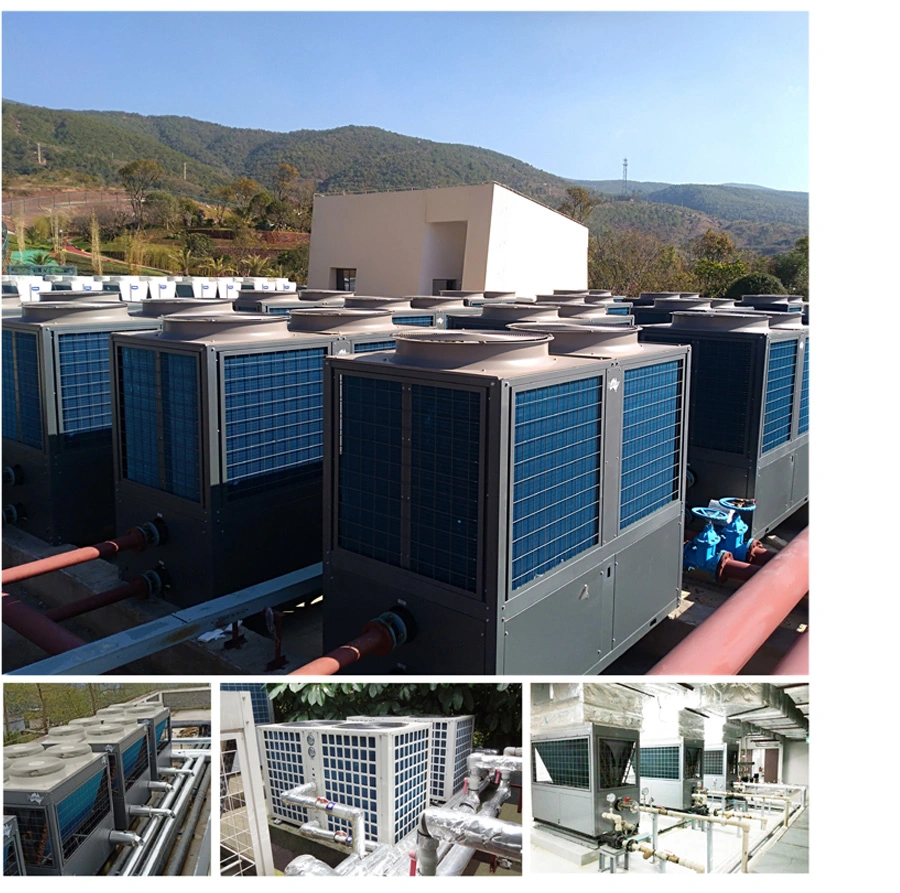

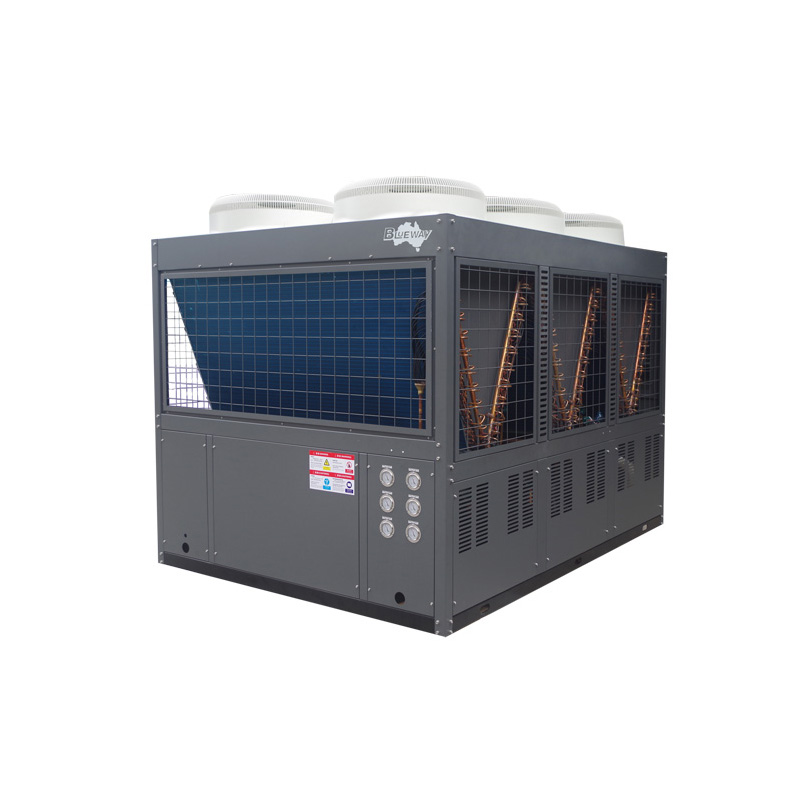

Blueway Commercial Circulating Hot Water Heat Pump are engineered for commercial and industrial applications, delivering reliable hot water at the required temperatures. Large units feature a unique V-shaped evaporator design that maximizes heat exchange surface area, significantly enhancing overall efficiency.

CIRCULATING HOT WATER HEAT PUMP KEY COMPONENTS

Water Heat Exchanger

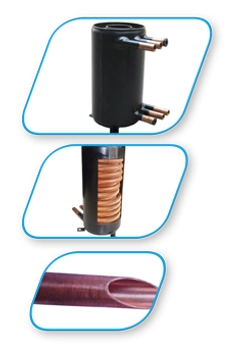

1) High efficiency tube-in-shell heat exchanger for Circulating Heat Pumps

● High working pressure

The copper pipe is of 0.8~1.2 mm thickness.no welding inside. With its extraordinary pressure resistance property, the copper pipe is without any leakage under 5Mpa pressure test.

● The internal spiral surface of the copper tube ensures effectiveness of heat exchange and prevents from lubricant accumulation.

Working Conditions
Refrigerant Side Water Side
Max. Working Pressure 5.2Mpa 3.2Mpa
Working Temp. Range -50~150 ℃ -50~150 ℃ (above freezing point)

● Grooved external surface of the copper tube increases also the heat transfer area which is 3.7 times of the smooth surface.

Circulating Hot Water Heat Pump
Circulating Hot Water Heat Pump

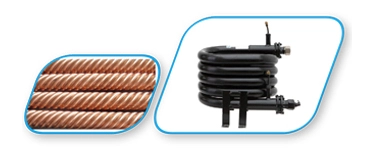

2) High efficiency tube-in-tube heat exchanger for Instant Heating Heat Pumps

● Spiral tube used to increase heat transfer area for high efficiency

● Specially designed to provide excellent efficiency, reliability, and reduce fouling.

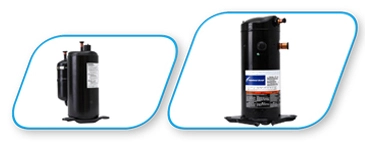

Compressor

● Famous brand rotary compressor for Domestic Heat Pumps

● Copeland, Danfoss or Panasonic scroll compressor for Commercial Heat Pumps

Circulating Hot Water Heat Pump

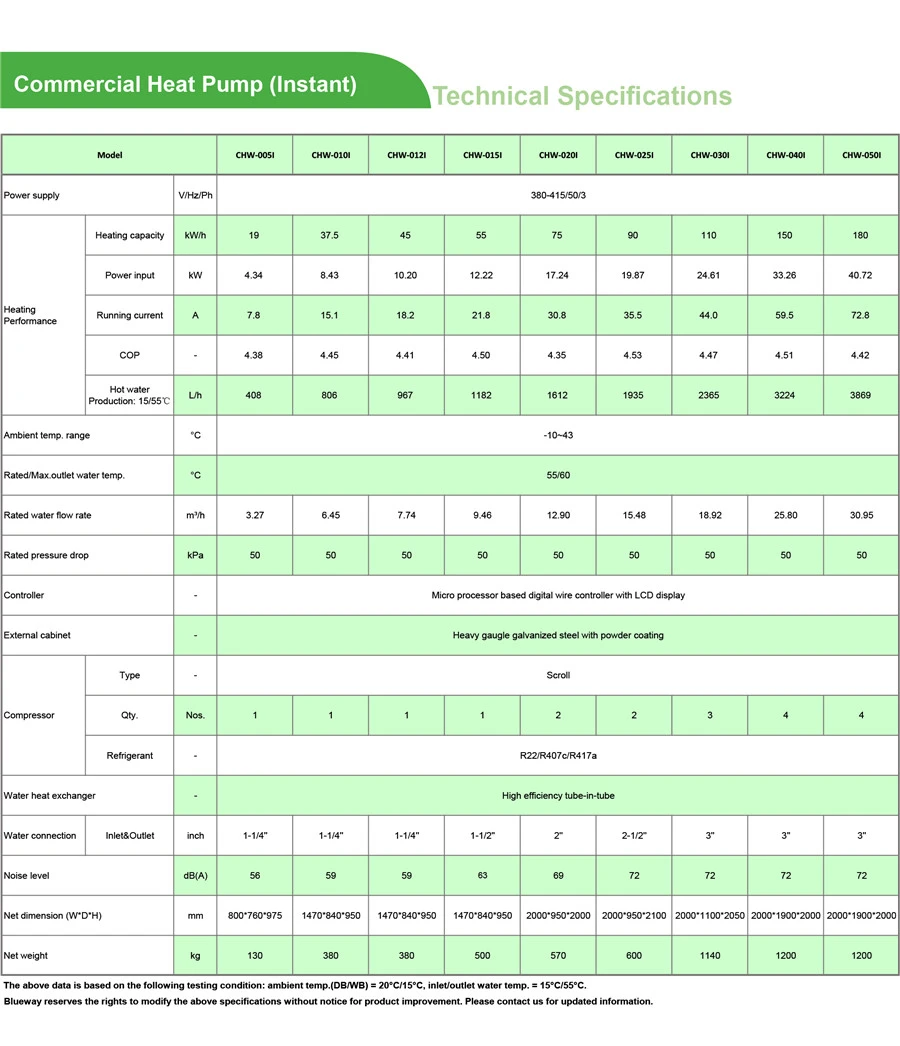

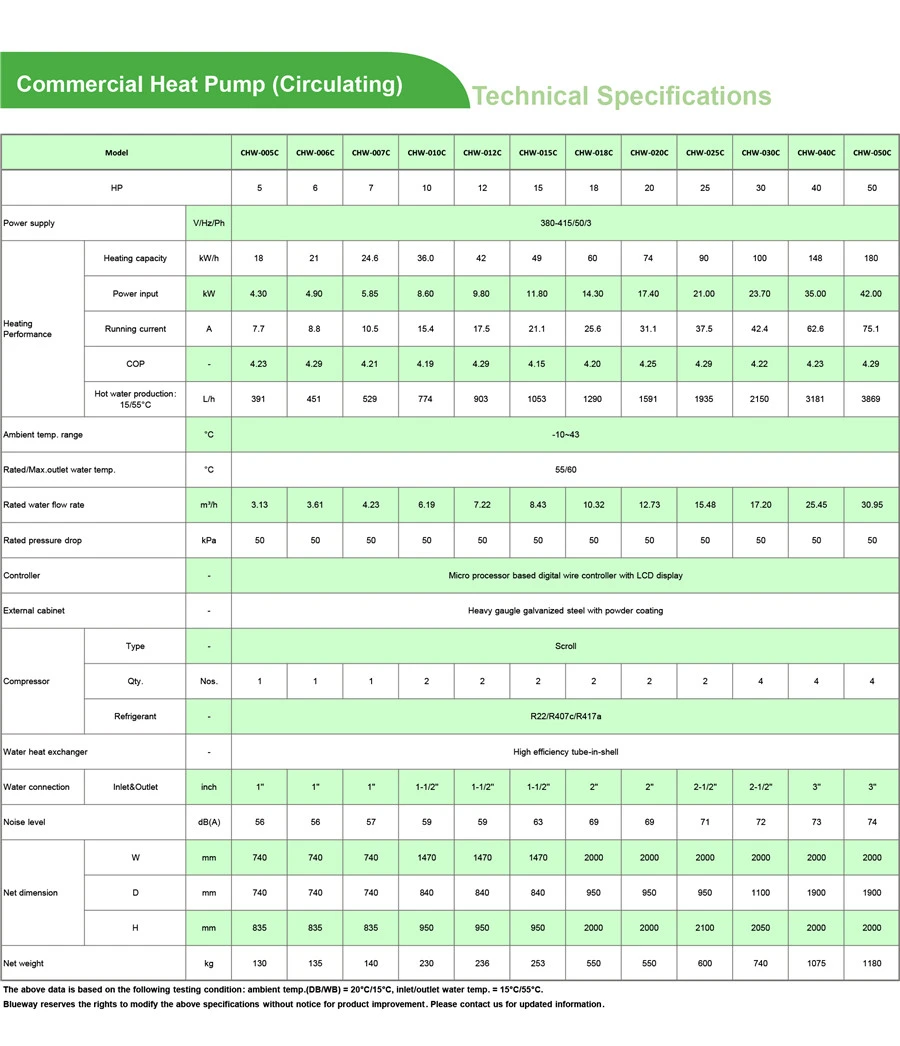

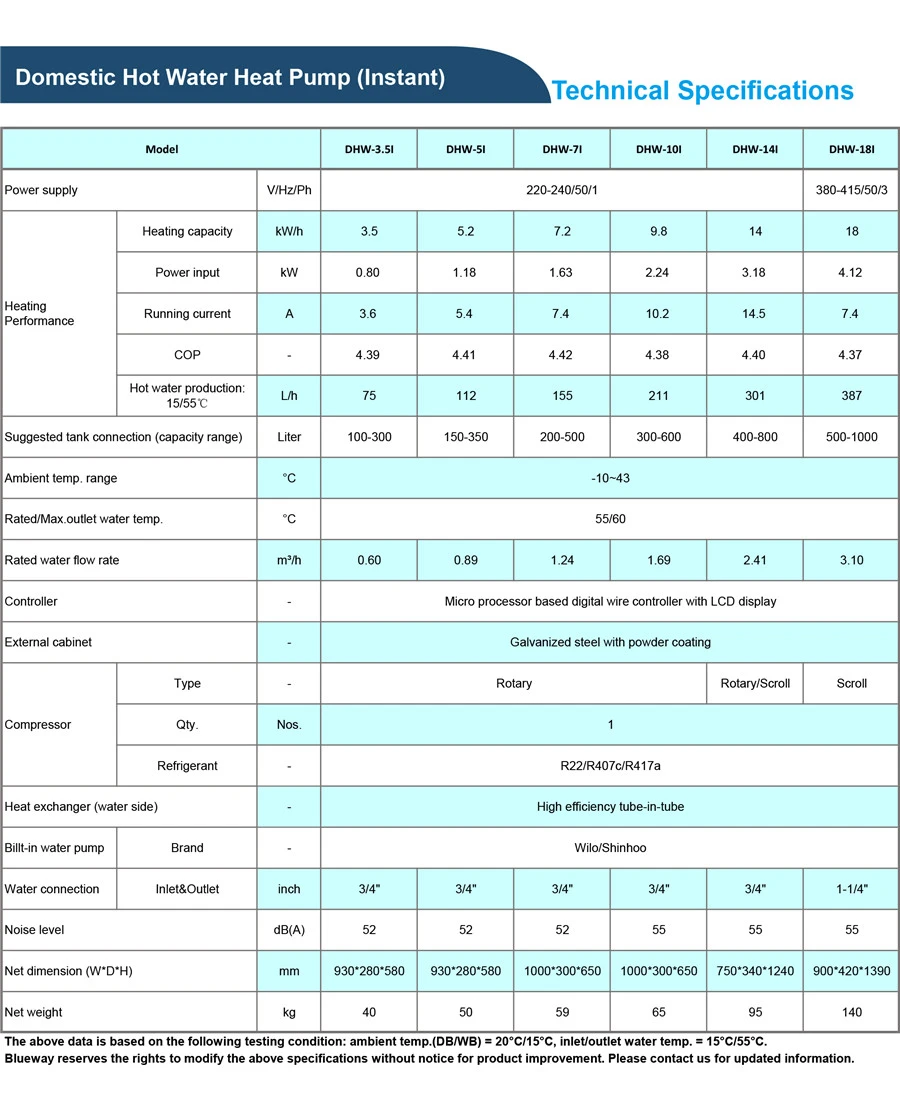

Product Parameter

Circulating Hot Water Heat Pump Circulating Hot Water Heat Pump Circulating Hot Water Heat Pump Circulating Hot Water Heat Pump

FEATURES & HIGHLIGHTS

High-Efficiency Compressor: Equipped with a world-renowned brand compressor for reliable performance and energy savings.

Eco-Friendly Refrigerant: Uses high-efficiency, environmentally friendly refrigerant with zero ozone depletion potential (ODP).

Intelligent Digital Controller: Microprocessor-based controller with LCD display for precise and easy operation.

Adjustable Water Temperature: Wide temperature range adjustable from 25°C to 60°C to meet various needs.

Durable Water Heat Exchanger: Tube-in-shell design for cycle heating models; tube-in-tube for direct heating models – both built for longevity.

Automatic Defrosting: Ensures consistent performance even in low ambient temperatures.

Optional Circulation Pump: Built-in water pump available for convenient installation.

Anti-Legionella Function: Periodic activation to maintain water hygiene and safety.

Retrofit Compatibility: Can be easily integrated with existing geysers or used alongside solar water heating systems.

Blueway Chinese source factory direct supply

The name of Blueway was founded in 1993. Blueway manufacturing center is located at Shunde, Foshan city of Guangdong China, which mainly focuses on HVAC industry, manufacturing & providing integrated energy-saving solutions.

Blueway with diverse kinds of products, such as Air Source Water Chiller, Heating Cooling Heat Pump, Hot Water Heat Pump, Swimming Pool Heat Pump, Water to Water Heat Pump & Commercial Air Conditioner.

For European countries and regions, Blueway EVI Heat Pump can credibly at ultra-low outdoor temp. down to -35'C, with space heating & cooling & DHW function, smart Wi-Fi, R290/R32/R410a is available. For Middle East gulf areas, Blueway Air Cooled Water Chiller & Heat Pump is specially designed for extremely hot weather up to 53'C, with multi-protection & self-diagnosis function.

Blueway’s mission is "Make life comfortable!". It has kept supplying and exporting the liquid heating and cooling systems throughout 30 years, covering over 40 countries and regions. Utilizing its advantage of strong R&D capacity, Blueway has developed its intelligent monitoring control system. Moreover, Blueway is also the recommended brand by famous hotels and engineering consultancy companies in the domestic market, providing OEM, OBM & ODM service, energy-saving solutions can be credibly provided with fast response.

Circulating Hot Water Heat Pump

Cooperative Partner

Blueway has established long-term partnerships with leading companies across more than 40 countries and regions, reinforcing our position as a premier China-based supplier of industrial air cooled water chillers. Our factory collaborates with renowned hotels, engineering consultants, and HVAC distributors worldwide, offering tailored OEM, OBM, and ODM services to meet diverse market needs. These partnerships are built on our expertise as a dedicated manufacturer of energy-efficient cooling systems, including custom solutions for extreme environments. By choosing Blueway, partners gain access to reliable products, fast response times, and the full backing of a Chinese factory with three decades of industry leadership.

Circulating Hot Water Heat Pump

FAQ

Q1: Are you a manufacturer or trading company?

A: We are a professional HVAC manufacturer based in China. Our factory is located in Shunde, Foshan, with over 30 years of manufacturing experience. We provide factory-direct wholesale pricing and accept OEM/ODM orders.


Q2: Where is your factory located? Can I visit it?

A: Our factory is in Shunde, Foshan, Guangdong Province, China. We warmly welcome clients from around the world to visit our production line and see our quality control process firsthand.


Q3: What products does Blueway offer?

A: As a leading China supplier, Blueway offers a wide range of HVAC products, including industrial air cooled water chillers, high-capacity indoor pool dehumidifiers, commercial DC inverter rooftop package units, air source heat pumps, and more.


Q4: Do you provide OEM or ODM services?

A: Yes. We provide OEM, ODM, and OBM services. You can customize the product design, branding, packaging, and technical specifications according to your market requirements.


Q5: What certifications do your products have?

A: Our products are CE certified, and our factory is ISO9001:2015 qualified. We also comply with international environmental standards and offer eco-friendly refrigerant options like R410A and R32.


Q6: How do you control product quality?

A: We have a strict quality control system. Every unit undergoes inspection during production, pre-shipment testing, and final performance checks to ensure reliability before leaving our China factory.


Q7: What is your delivery time?

A: For standard models, delivery is 15–25 working days. For bulk or customized OEM orders, lead time may vary depending on quantity and specifications. Please contact our sales team for details.


Q8: Do you offer after-sales support?

A: Yes. We provide 24/7 online technical support, remote troubleshooting, and spare parts supply. Our team is always ready to assist with installation guidance and maintenance advice.
