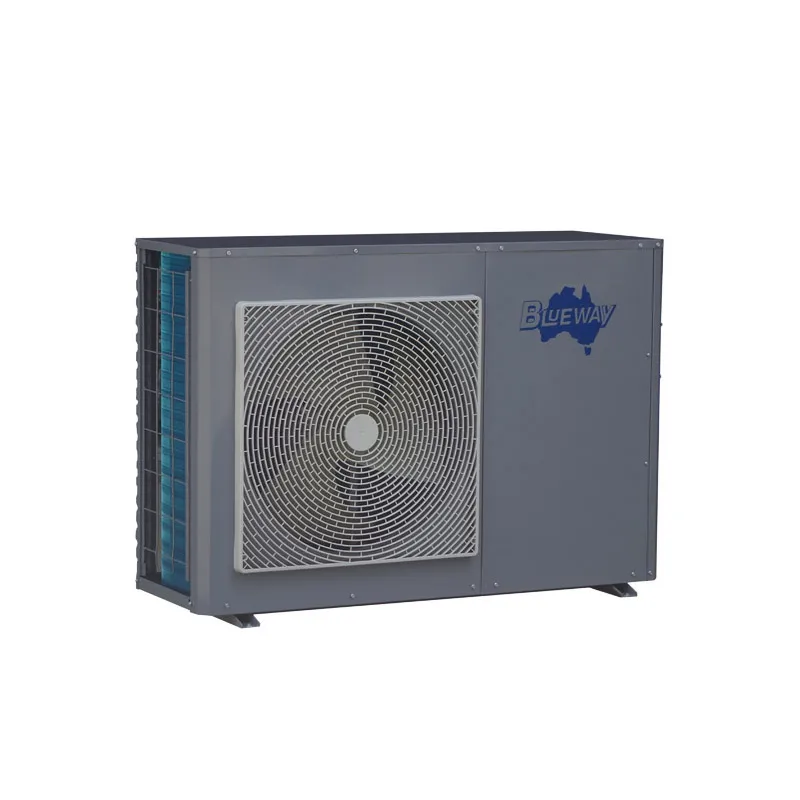

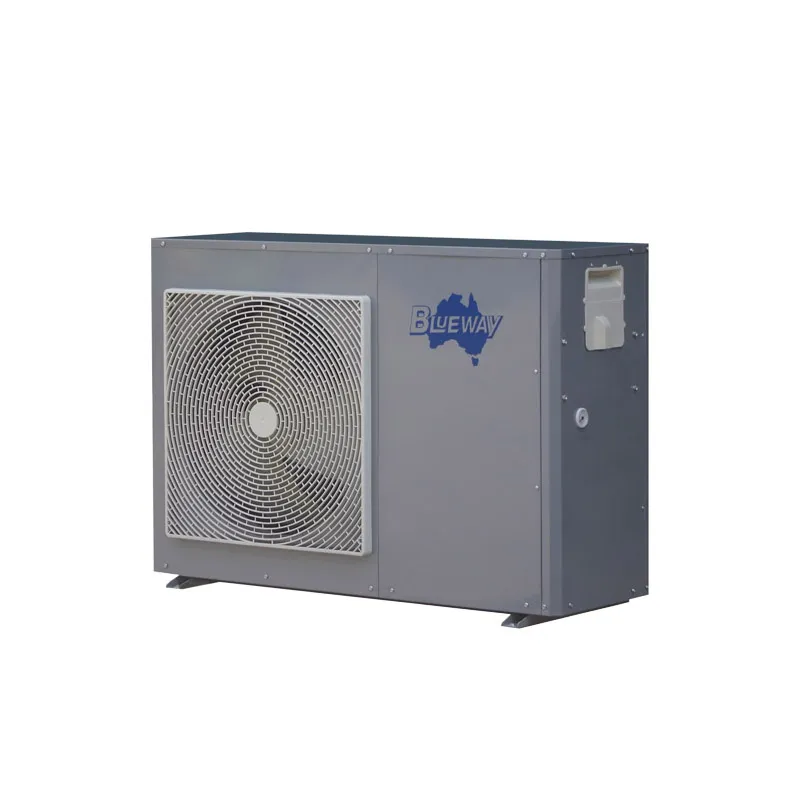

R290 Heat Pump For Underfloor Heating

The R290 Heat Pump For Underfloor Heating is an advanced air-to-water DC inverter system engineered to meet the complete hydronic needs of modern residential and light commercial buildings. Manufactured in Shunde, Foshan, China, by Blueway—an established HVAC specialist operating since 1993—this heat pump series delivers reliable space heating, summer space cooling, and sanitary domestic hot water (DHW) in a single integrated solution.

Hydronic underfloor heating systems perform with optimal energy efficiency when supplied with low-to-medium water temperatures. The Heat Pump For Underfloor Heating is tailored specifically to match these operating parameters. By continuously modulating compressor capacity to meet real-time thermal demand, the system eliminates energy-intensive full-load cycling, maintaining precise indoor water supply temperatures while significantly lowering seasonal power consumption.

Core Advantages for Radiant Floor Applications

Radiant floor heating relies on steady thermal distribution across large surface areas. Integrating a DC inverter heat pump with underfloor piping loops provides several technical and operational benefits:

• Optimized Hydronic Efficiency: Operating within low-temperature water regimes allows the heat pump compressor to run at peak seasonal efficiency, maximizing energy savings compared to conventional high-temperature boilers.
• Uniform Thermal Comfort: Radiant heating eliminates drafts, cold spots, and airborne dust circulation, providing consistent vertical temperature gradients from the floor up.
• Reversible Summer Cooling: The system can circulate chilled water through radiant floor circuits or fan coil units (FCUs) during warm months, offering year-round climate control without requiring separate air conditioning equipment.
• Multi-Source System Synergy: Designed to interface smoothly with auxiliary thermal sources, including solar collectors, auxiliary gas or oil boilers, and backup electric heating elements.

Key Technical Features & Engineering Highlights

The R290 Heat Pump For Underfloor Heating incorporates high-grade mechanical and electronic components to ensure long-term stability and simple operational management:

• Extended Low-Ambient Operation: Specially engineered low-ambient models maintain stable heating performance in harsh winter climates with outdoor ambient temperatures dropping down.
• Five Versatile Operating Modes: Configurable for Heating Only, Heating + DHW, Cooling Only, Cooling + Hot Water, and DHW Only to satisfy seasonal site demands.
• Variable-Capacity DC Inverter: Features premium DC inverter rotary or scroll compressors (such as Mitsubishi or Panasonic) paired with electronic expansion valves for precise refrigerant flow regulation.
• High-Efficiency Heat Transfer: Utilizes a stainless steel plate heat exchanger characterized by low hydraulic pressure drop, high thermal efficiency, and strong corrosion resistance.

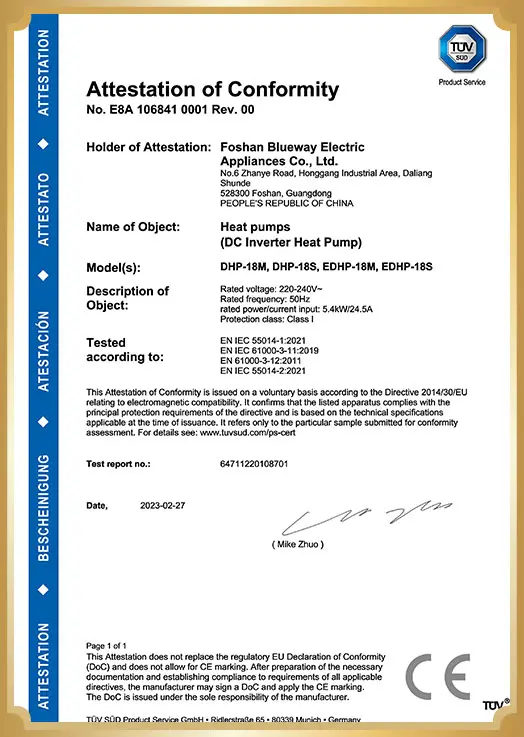

• ErP A++ Class Certification: Selected models in the series have achieved ErP A++ energy ratings verified under rigorous TÜV test standards.
• Intelligent Control Architecture: Equipped with a microprocessor controller featuring an intuitive LCD touchscreen interface, automatic self-diagnostics, built-in safety protections, and a 3-way valve control output.
• Optional Wi-Fi Connectivity: Enables end-users and maintenance teams to monitor operating data, adjust temperature setpoints, and diagnose faults remotely via a dedicated mobile app.
• Corrosion-Resistant Housing: Built with durable, weather-resistant composite cabinetry designed to withstand prolonged exposure to salt, humidity, snow, and UV radiation.

Technical Specifications

Detailed performance parameters and system configurations vary by specific unit model. Below is an overview of standard specifications for this product series:

Split vs. Monoblock Configuration Selection

To accommodate diverse site constraints, building layouts, and regional climate conditions, the R290 Heat Pump For Underfloor Heating is offered in two distinct structural formats:

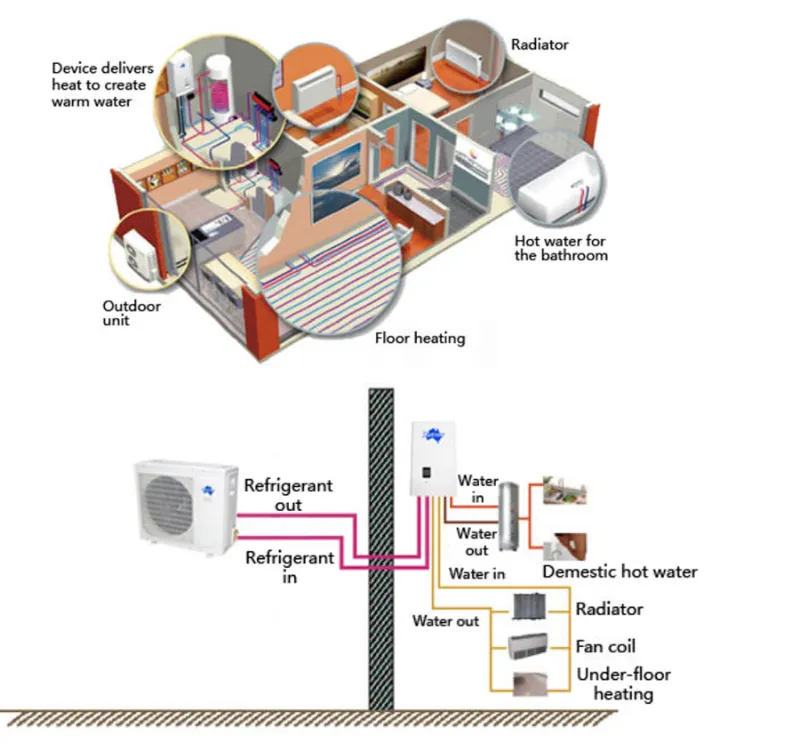

Split System Architecture

The split configuration divides the heat pump into an outdoor condensing unit and an indoor hydraulic module. All water-bearing components are installed indoors within a mechanical room or utility space, completely eliminating the risk of outdoor pipe freezing during electrical outages or extreme winter freezes. The outdoor unit is engineered with anti-snow air intake geometry, while the indoor unit features a compact, boiler-replacement cabinet design that integrates neatly with existing underfloor manifolds and DHW storage tanks.

Monoblock System Architecture

The monoblock configuration houses the complete refrigeration loop and hydraulic circuit inside a single outdoor cabinet. This all-in-one design eliminates the need for field refrigerant piping work, streamlining site installation and reducing labor costs. Monoblock units can be ordered with optional factory-installed hydraulic components, including a DC water circulation pump, an internal expansion vessel, and an auxiliary backup electric heater.

Project Application Scenarios

The flexibility of the R290 Heat Pump For Underfloor Heating makes it suitable for a wide range of new construction and retrofit hydronic projects:

• Private Residences & Single-Family Villas: Delivering low-noise, high-comfort underfloor heating, summer cooling, and daily domestic hot water.
• Multi-Family Apartments: Providing decentralized or centralized hydronic heating and hot water solutions.
• Light Commercial Buildings: Meeting space-conditioning requirements in boutique hotels, small offices, showrooms, and health clinics.
• Hybrid Energy Projects: Interfacing with existing gas boilers or solar thermal collectors to reduce fossil fuel dependency in renovation projects.

Engineering Selection & System Integration Factors

Achieving optimal efficiency and operational longevity requires careful evaluation of building parameters prior to equipment sizing. Key engineering design factors include:

1. Design Heating & Cooling Load: Calculate peak transmission and infiltration thermal losses under local outdoor design temperatures rather than relying on nominal square footage estimates.
2. Target Supply Water Temperature: Verify required flow temperatures for terminal units for slab underfloor loops, for fan coils, or higher for legacy radiators.
3. Hydronic Circuit Protection: Select between split or monoblock designs based on ambient freeze risks and available indoor plant room space.
4. DHW Demand Sizing: Size sanitary hot water storage tanks and heat exchanger coil surfaces according to peak daily hot water draw schedules.

Manufacturing Background & Quality Assurance

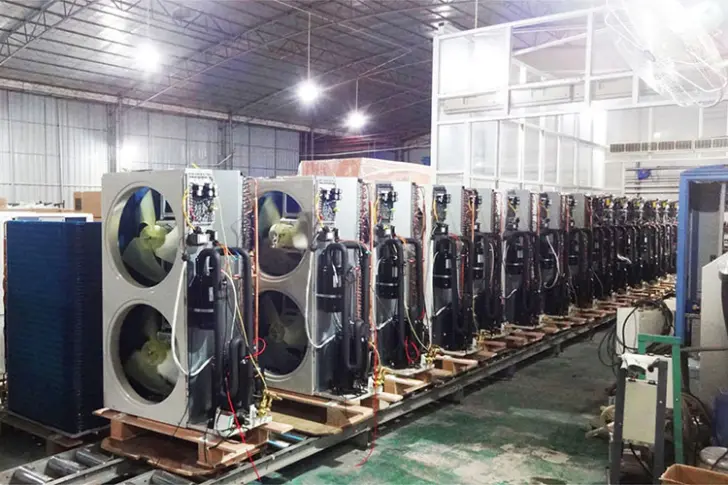

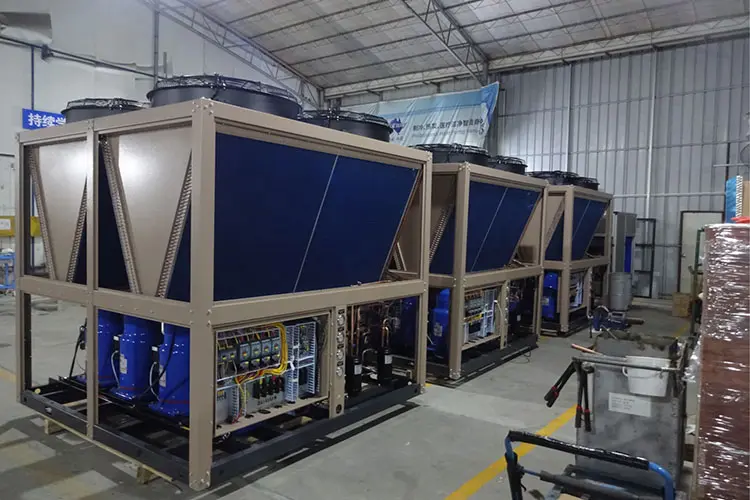

Blueway operates a specialized HVAC development and manufacturing center in Shunde, Foshan, China. Backed by nearly 30 years of manufacturing experience, Blueway has developed over 1,000 original R&D products and delivered more than 10,000 successful engineering solutions globally. Products are manufactured under rigorous quality control standards, incorporating micro-processor protection algorithms to safeguard compressors and water loops against voltage fluctuations, pressure anomalies, and freezing. Blueway provides comprehensive OEM, OBM, and ODM services, supported by 24/7 online technical assistance and authorized service partners across Europe, the Middle East, North America, and South America.

Frequently Asked Questions

Why is the R290 Heat Pump For Underfloor Heating ideal for low-temperature radiant systems?

Hydronic underfloor heating operates most efficiently at lower supply water temperatures. The DC inverter compressor and optimized heat exchanger design allow the heat pump to operate at its highest Coefficient of Performance (COP) within this range, delivering significant energy savings compared to traditional heating systems.

Can this heat pump be connected to existing boilers or solar thermal arrays?

Yes. The onboard microprocessor controller includes signal outputs for auxiliary heating management, allowing the unit to operate alongside solar thermal systems, gas boilers, or backup electric heaters in a hybrid energy setup.

What compressor and pump components are used in these units?

Blueway integrates established DC inverter rotary or scroll compressors from brands such as Mitsubishi or Panasonic, paired with high-efficiency Class-A circulation water pumps from Wilo or Shinoo.

Is remote operational control supported?

Yes. In addition to the local LCD touch controller, an optional Wi-Fi module allows users and system integrators to monitor operating conditions, adjust target water temperatures, and review system diagnostics via a smartphone application.
