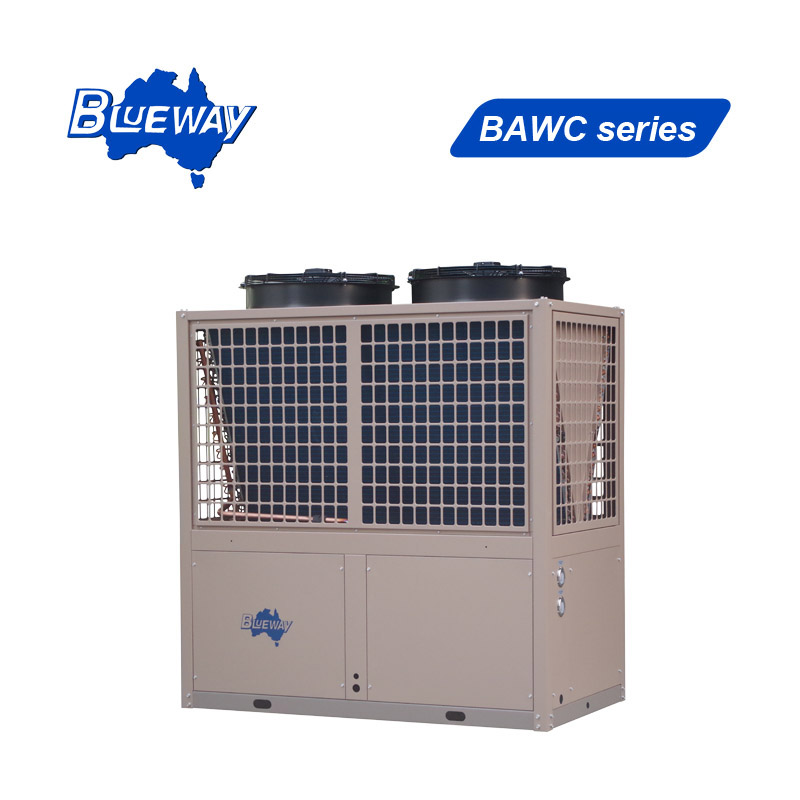

  • Commercial Air Cooled Water ChillerCommercial Air Cooled Water Chiller

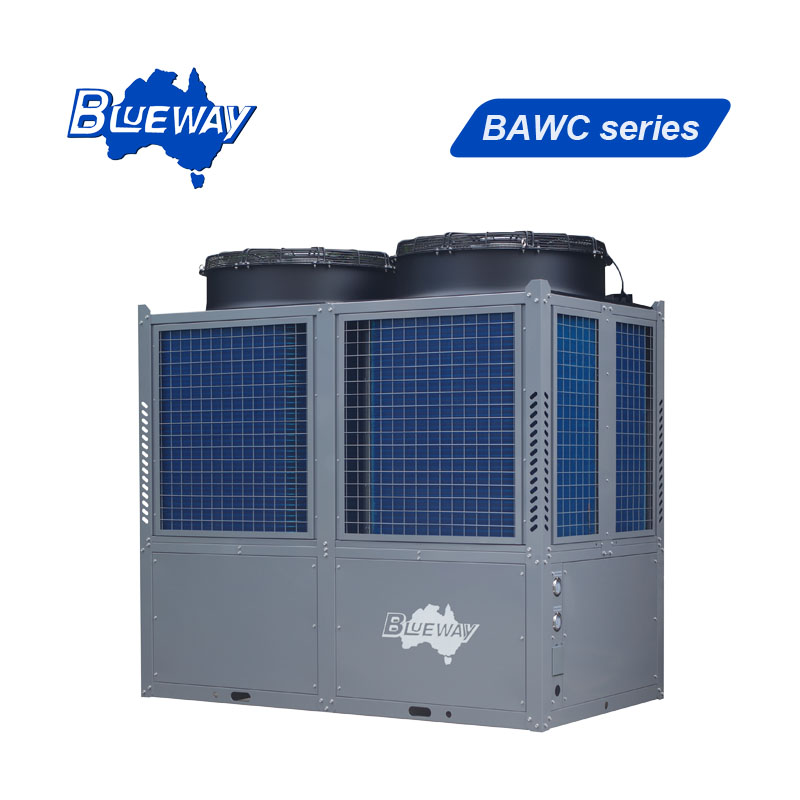

  • Commercial Air Cooled Water ChillerCommercial Air Cooled Water Chiller

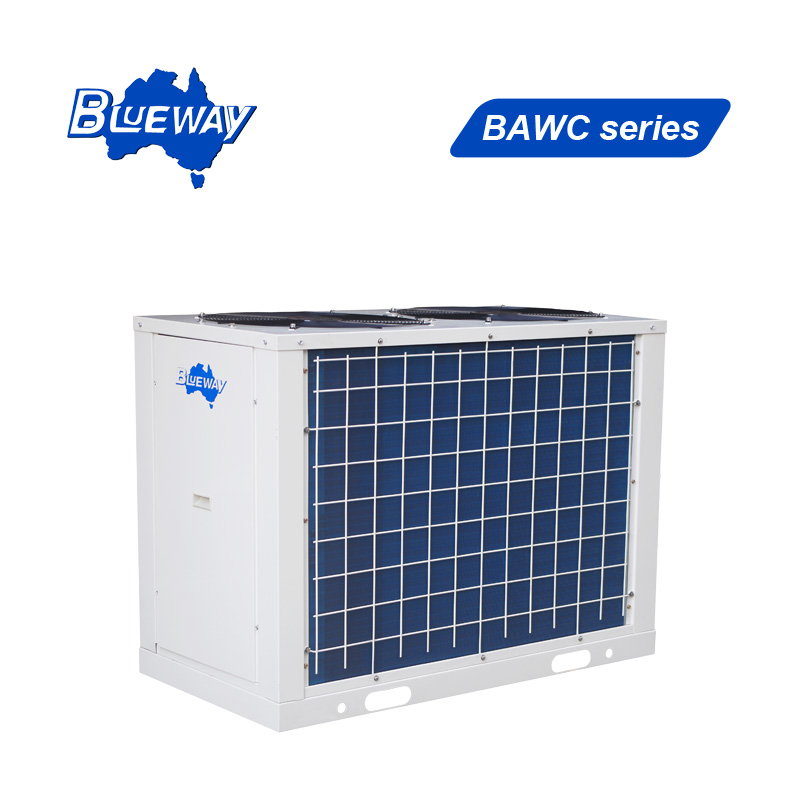

  • Commercial Air Cooled Water ChillerCommercial Air Cooled Water Chiller

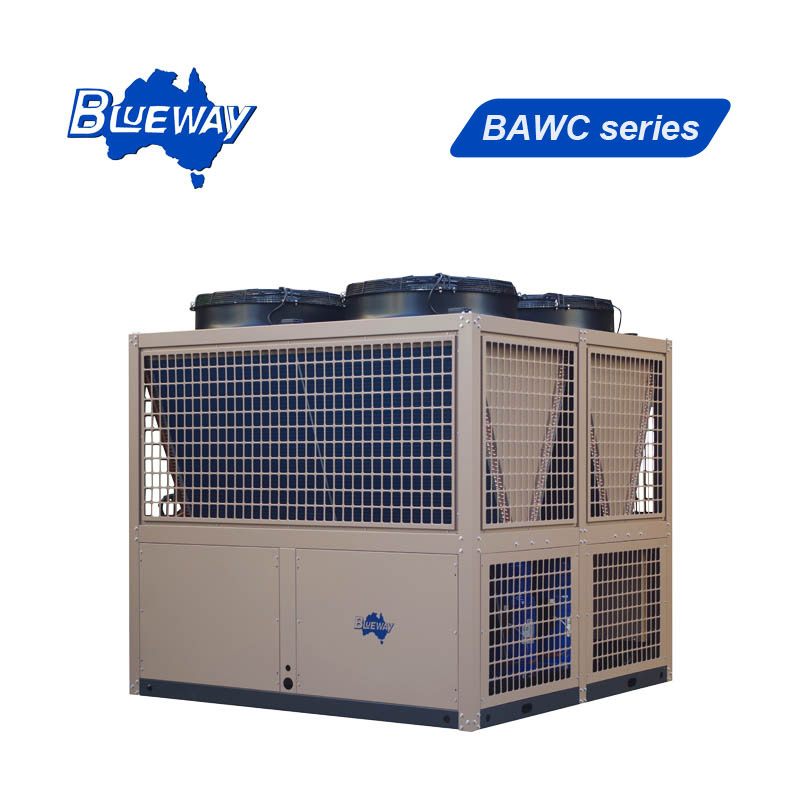

  • Commercial Air Cooled Water ChillerCommercial Air Cooled Water Chiller

Commercial Air Cooled Water Chiller

Model:High Efficiency Large-Scale Air Cooled Water Cooler

The Blueway BAWC series of Commercial Air Cooled Water Chiller solutions are meticulously crafted to provide efficient, energy-conscious, and dependable cooling for a diverse range of commercial applications. Boasting a tropical-friendly design, equipped with T3 compressors, and backed by a sophisticated control system, these chillers, even in large-scale modular configurations, ensure optimal performance and reliability.

Commercial Air Cooled Water Chiller

Air Cooled Water Chiller is specially designed for the need of domestic chilled water in tropical regions of the gulf areas, where the ambient temperature in extremely hot summer can go above 50℃, causing the rooftop tank water reach unbearable temperatures, for application sites like hotel, office tower, villa group, school, hospital, factory, etc. Moreover, Blueway also can provide chiller for air conditioning application for low outlet water temperature down to 7 degrees, but it is totally different design from the domestic chilled water type.

Working Principle

The system consists of a refrigerant circuit and a water circuit. The refrigerant circuit is composed of a compressor, a condenser coil, a heat exchanger and a throttling device. The water circuit is composed of a water pump and the same water heat exchanger. The refrigerant absorbs heat from the water passing by the heat exchanger, by which the water temperature is reduced.

Application Diagram (Commercial Air Cooled Water Chiller)

KEY COMPONENTS

Condenser Coils

The evaporator or condenser coil used is of fin and tube type. The fins are hydrophilic treated aluminum fins to resist corrosion, and the copper tubes are inner-grooved type, which increases the heat transfer in the refrigerant side.

Intelligent Control

The units are supplied with micro processor based digital controller with LCD display. The controller is programmed to provide a maximum protection to the heat pump system and accurate temperature control. The control panel is completely factory wired with all accessories and terminals included.

Water Pump

For commercial range, we adopt CNP or Yuanli brand. And it is recommended to install water pump externally for convenient daily maintenance.

Aluminum Fan Blade

Blueway water chillers adopt aluminum fan blade in tropical regions.

PHE

High Efficiency Compressor

With tropical resistance capacity

High efficiency and energy saving

Quiet operation due to less moving parts

High thermal efficiency

High working pressure

Low maintenance

More options: tube-in-tube, tube-in-shell

Features

Tropical design for extremely hot working ambient temperature up to 53℃

High efficiency rotary or scroll compressor, tropical for high ambient conditions

Eco-friendly CFC free refrigerant R410a, without ozone depletion

Electric expansion valve for reliability and high precision expansion

Intelligent micro processor based digital controller with LCD user-friendly interface

Comfortable sanitary chilled outlet water temp. range is 15-35℃

Brazed SUS 316 plate heat exchanger for high efficiency, super corrosion resistance

Guaranteed water safety, no potential risk of contamination to potable water

Heavy galvanized steel cabinet with epoxy powder painted for lasting outdoor life span

Full safety protection incorporated to the water chiller system:

high pressure & low pressure protection

compressor overload and high discharge temperature protection

phase failure protection

water flow protection

anti-freezing protection

Coated aluminum fins for corrosion resistant

Built-in circulation pump is optional

Highlights

Providing customized energy-saving solutions to engineering projects, especially for large-scale modular chillers

Compact design, providing OEM service

Option: water chiller for air conditioning application with outlet water temp. 7-15℃

Easy Installation: be easily installed by a plumber or electrician to an existing tank

Easy Operation: touch screen user interface, with RS485 interface, baud rate 9600

Energy Saving : saves 2/3 running cost than conventional electric equipment

FAQ

Q:What is the advantage of your air cooled water chiller?

A:Blueway, specialized in exporting T3 products to middle east for many years, which is compatible with BAC net for centralized control, with RS485 inteface and baud rate 9600 as standard. Without tripping at 53 degrees high working outdoor temperature. We are capable of manufacturing air cooed water chilled with wide range, including residential, commercial, industrial, also large scale modular type.


Q:Can you make chiller for 60Hz?

A:Generally, 60Hz with higher cost, and less compressor brand options. But we have our own strong R&D team, can provide suitable energy-saving solutions, no matter on-off or inverter type, 50Hz or 60Hz.


Q:What is the production lead time?

A:Generally, it depends on the PMC & production plan, may takes around 30 working days if standard models. It will take around 40 working days if customized items.


Q:Can you provide shipping service?

A:Yes, we have our forwarders who can deal with the cargo with refrigerant.


Q:Can you provide Certificate of Origin?

A:Yes, we can. Many countries need Certificate of Origin for import clearance procedure, like UAE, Qatar, Kuwait, Saudi Arabia, etc.


Q:How many units can fit in one container?

A:Please kindly indicate your desired model and quantity, then we will work out a loading plan for your reference.


Q:Can you export big chillers?

A:Yes, in generally, we will design the chillers that can fit in the container.
