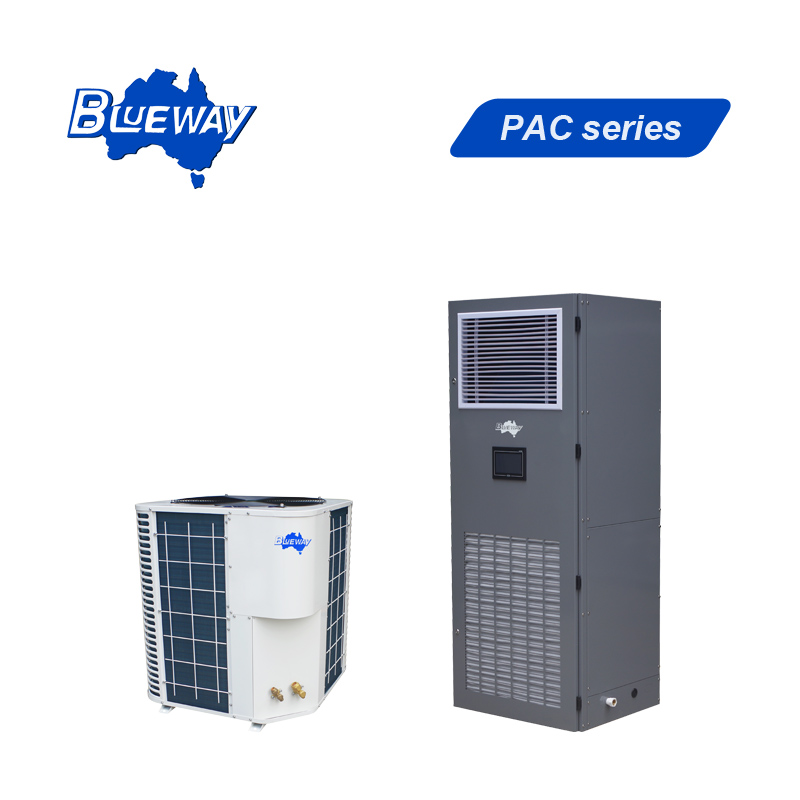

Precision Air Conditioner

Blueway high quality Precision Air Conditioners are also known as a CCU (close control units) or CRAC (computer room air conditioner), which are refrigerating equipment specifically designed to provide precise control of temperature and humidity in all applications in which is required a very high degree of precision. They are used in data centers, where the refrigeration loads required can vary from 7 to 230 kW, server rooms, data centers, mobile, laboratories and many other commercial and industrial applications. Optional upflow and downflow and optimised efficiency is delivered by way of EC fans.

China Precision Air Conditioner Product Introduction from China

Precision Air Conditioner is designed for close temperature and humidity control. With superior product structure and stylish design, providing room-based cooling, perfect humidification and air filtration. And this unit provides high reliabilit operation with the ease of service, system flexibility and redundancy necessary to keep the electronic equipment up and running within tight tolerance 24 hours a day.

Precision Air Conditioner General Feature

1. Low running costs and high efficiency.

2. Simple installation and operation.

3. Eco friendly CFC free refrigerant , without ozone depletion.

4. Micro processor based digital controller with user friendly LCD display.

5. A digital controller is incorporated to maintain the desired temperature and humidity.

6. Wide operation ambient temperature range.

7. Famous compressor ensures outstanding performance, ultra energy efficiency, durability and quiet operation.

8. Heavy gauge galvanized steel cabinet with epoxy powder painting, which for long lasting life span. .

Unit Dimensions

Precision Air Conditioner Installation Guide

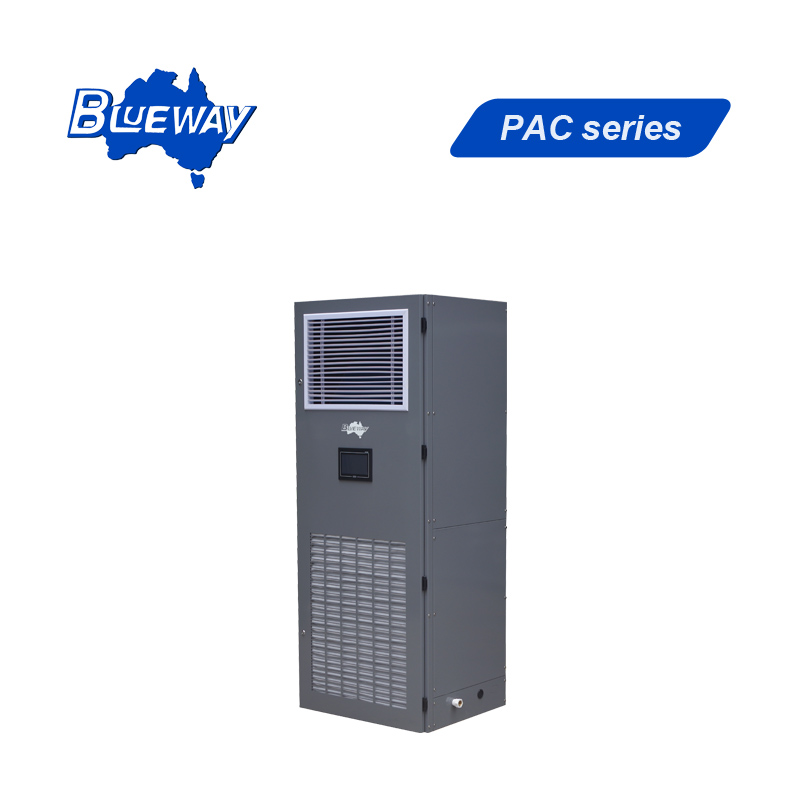

1) The indoor unit must be installed on the ground of the device room or computer room.

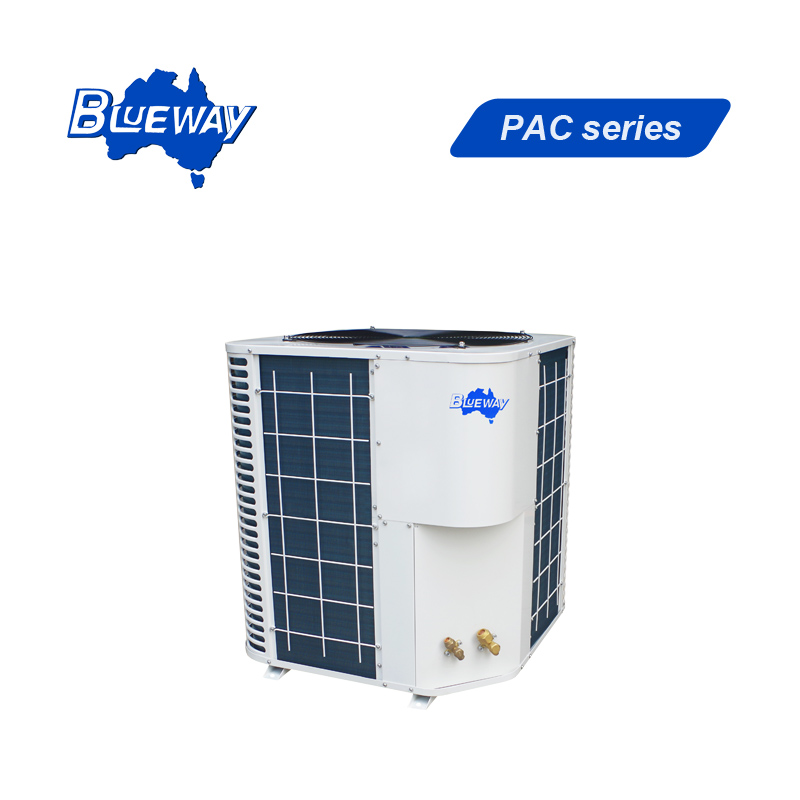

2) And the outdoor unit is installed on the ground of the outdoors or other rooms.

3) Before installation, confirm whether the installation environment meet the requirements of service, and confirm whether the buildings need to be configured with the construction work of pipeline laying, wiring and ventilation pipe.

4) Installation work must strictly follow the design drawing.

5) The whole system layout diagram:

Notes:

一: Pipelines provided by manufacturer

---:The site-laying pipeline (Done by technicians)

*: Forsystem normal operation and maintenance convenience, the components are supposed to beused.

*: When the equivalent length of the pipe exceeds 30 meters, then it should be equipped with these components. (These optional components need to be purchased by another order).

6) When the condenser is higher than compressor, install reverse bend on the inlet and outlet pipes of the condenser, to avoid liquid refrigerant backflow when the units stops. When installing the reverse bend, it must ensure that the top elbow pipe of the r copper pipe of condenser.

7) The installation diagram, when the indoor unit is higher than outdoor unit.

Storage Environment

BLUEWAY STRENGTH

1.Blueway has around 30 years of rich HVAC manufacturing experience.

2.Over 1000 original R&D products, Blueway is qualified to be OEM/OBM/ODM.

3.Over 10000 engineering solutions with great success provided by Blueway.

4.Online technical service is available twenty-four hours a day without break.

5.Blueway intelligent control system with precise timing, temperature control & remote monitoring function.

Market Overview

With advanced technology and R&D capacity, Blueway has obtained over more than 20 patents and become one of the leading HVAC manufacturers in China. Meanwhile, 70% of Blueway products have been exported to oversea markets, including Australia, Europe, North America, Middle East, South Africa, South America and obtained worldwide recognition. Additionally, it has over 20 representative offices located in different cities of China, and also has its authorized distributors in Europe, Middle East, North America and South America.


So far, Blueway has already provided over 10000 engineering solutions with great success. What's more, Blueway is also the recommended brand by Hilton Hotel in Chinese market. Blueway will continue its endeavor and commitment to serve its worldwide partners by providing solutions and innovative products of high efficiency.


FAQ

Q: What’s the capcity range?

A: 7~200kW.


Q: How about the production time?

A: About 35 working days after receipt the payment.


Q: Adopt which refrigerant?

A: Friendly energy-saving R410a.


Q: How about the airflow direction?

A: Upflow and downflow are optional.


Q: How about the control panel?

A: Adopt touch screen for export type.


Q: Hong long is the warranty time?

A: 1 year for the whole unit, 3 years for the compressor.


Q: What’s the colour option?

A: White and grey for shorter production period.
